LRS-35 to 150

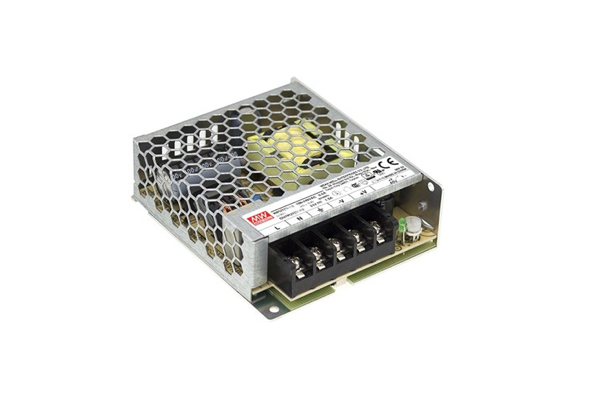

A highly efficient, fixed voltage, no load low power (<0.2~0.75W) consumption enclosed power supply for a wide range of industrial applications. It is more compact and efficient than previous generation models. The 30mm low profile design allows it to be built into 1U rack enclosures, while the metallic mesh case enhances the heat dissipation. It is also capable of operating at altitudes up to 5000 metres. Not only will it satisfy every kind of industrial related application but can also be utilised for household appliances thus accounting for a broader coverage across diverse industries. Backed by 3 year warranty.

SKU: N/A Category: Contact Category Manager
Clear

Features

  • Non-PFC, most economical models
  • Ultra compact and 1U low profile
  • 300VAC input surge
  • No load power consumption: 0.2W~0.75W
  • 5G vibration, 70℃ operation
  • Operating altitude up to 5000 meters
  • Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL60950-1 and GB4943

Additional information

Power / DC Voltage / DC Current Rating

35W 5V 7A, 35W 12V 3A, 35W 24V 1.5A, 50W 5V 10A, 50.4W 12V 4A, 52.8W 24V 2.2A, 70W 5V 14A, 72W 12V 6A, 75W 15V 5A, 75W 24V 3.2A, 90W 5V 18A, 100W 12V 8.5A, 105W 15V 7A, 108W 24V 4.5A, 150W 12V 12.5A, 150W 15V 10A, 150W 24V 6.5A, 158W 48V 3.3A
